All in One
The ultimate home battery, at an accessible price

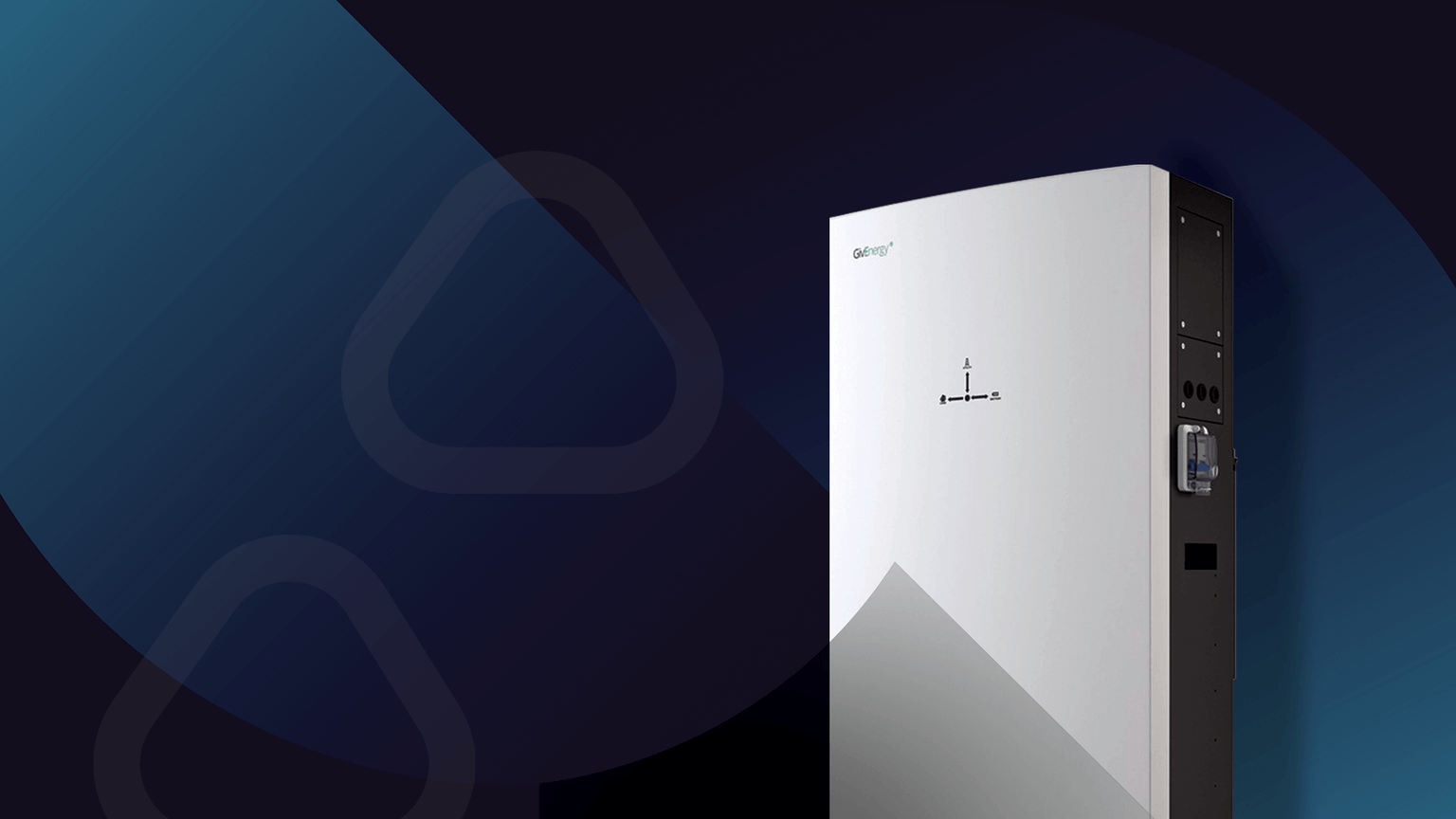

About the GivEnergy® All in One
Primarily working as an on grid system, the All in One can deliver 7.2kW of peak power into the home on top of any solar generation. Complete with a substantial 13.5kWh useable battery pack that stores excess generation. Featuring a modular design with 4 removable battery packs, allowing for ease of handling and installation.
Features
- Grid Services Ready
- Whole House Backup
- Flexible Rate Tariff
- Modular Design
- 4G / Wi-Fi / Ethernet connectivity
- LCD Display
- Mobile App
Specification
- Output: Nominal AC Power - 6000W, Peak Power - 7.2kW peak/6.0kW continuous, Rated Grid Voltage (AC Voltage Range) - 230 (180 to 270), Rated Grid Frequency - 50/60±5Hz, Nominal AC Current - 26A, Maximum AC Current - 32A, Displacement Power Factor - 0.8 Leading to 0.8 Lagging, Number of Parallel Operation - 6, Total Harmonic Distortion (THDi, Rated Power) - <3%
- Battery: Battery Voltage Range - 260-346V, Maximum Charge/Discharge Current - 25A, Nominal Voltage - 307V, Communication Interfaces - CAN, Battery Capacity - 13.5kWh, Depth of Discharge - 100%
- Environment: Ingress Protection - IP65, Operating Temperature Range -10°C - 50°C , Humidity - 0~95%, Altitude - 4000m (Derating above 2000m), Noise Emission (Typical) - <30dB
- Dimensions: 600mm (W), 1100mm (H), 280mm (D), Weight - 173.7kg
- General Data: Cooling Concept - Natural, Topology - Transformerless, Communication - RS485/CAN/LoRa, Connectivity - WiFi, LAN and 4G, Warranty - 12 Years, Protection Class - IP65, Display - LCD LED and App
Get the All in One installed by Earth Electrical
Why choose Earth Electrical for your GivEnergy® product installations?
Our team of seasoned professionals is well-versed with the distinct nuances of GivEnergy's product range, ensuring an installation process that is smooth, efficient, and tailored to your specific requirements. Furthermore, our commitment to fostering a greener future aligns seamlessly with GivEnergy's sustainability ethos, making us the perfect partner to help you step into the solar EV and batteries with confidence and ease. Entrust us with your installation needs and join countless satisfied customers in making a conscious choice for the environment, without compromising on quality and convenience.
Get a free quote
